Gallery

Every screen, captured live

These are real screenshots of drDRO v1.4.0 rendered at the target panel resolution (1024×600) against a live board. Click any image to enlarge.

Home & operating modes

Home — DRO mode — Home — DRO
Pure read-out, largest digits.

Home — Index mode — Home — Index
Divisions & indexed moves.

Home — ELS mode — Home — ELS
Thread-pitch selection.

Home — Jog mode — Home — Jog
Continuous jogging + speed.

Setup & configuration

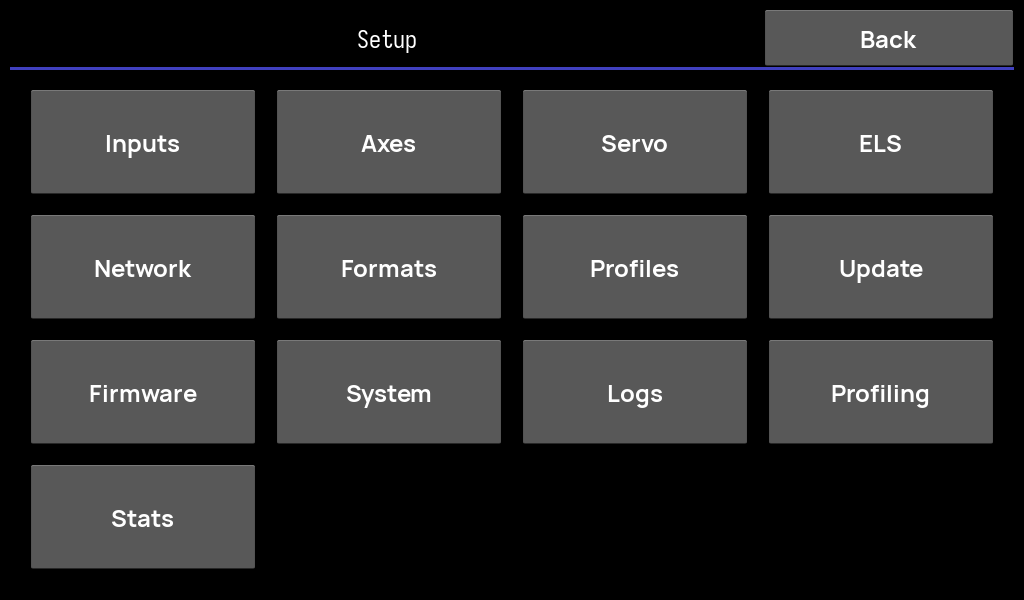

Setup menu — Setup
The configuration hub (13 areas).

Scale inputs list — Scale Inputs
The four hardware inputs.

Scale input detail — Input detail
Spindle mode, encoder filter, ratio.

Axes configuration — Axes
Add / remove display axes.

Axis detail — Axis detail
Name, sync ratio, transform.

Servo settings — Servo
Gearing, speeds, rotary/ELS.

ELS setup — ELS Setup
Spindle / saddle / cross-slide roles.

Plot view — Plot View
Pattern plotting & distance-to-go.

Appearance

Format settings — Formats
Digits, units, display prefs.

Colour picker — Colour Picker
RGBA / HSV wheel + hex.

Font picker — Font Picker
Seven-segment & modern faces.

Network, profiles & updates

Network settings — Network
Wi-Fi via NetworkManager.

Machine profiles — Profiles
Save & swap full setups.

Firmware screen — Firmware
Flash the board over RS-485.

Software update — Software Update
Install app releases from GitHub.

System & diagnostics

System screen — System
Storage & reboot (Pi only).

Stats screen — Stats
Versions, link, comm rate.

Profiling screen — Profiling
FPS & frame timing.

Logs screen — Logs
Browse on-device log files.

Log viewer screen — Log Viewer
Opens a selected log file.

See it running on your bench

Flash the image, or run the app locally to click through these yourself.
